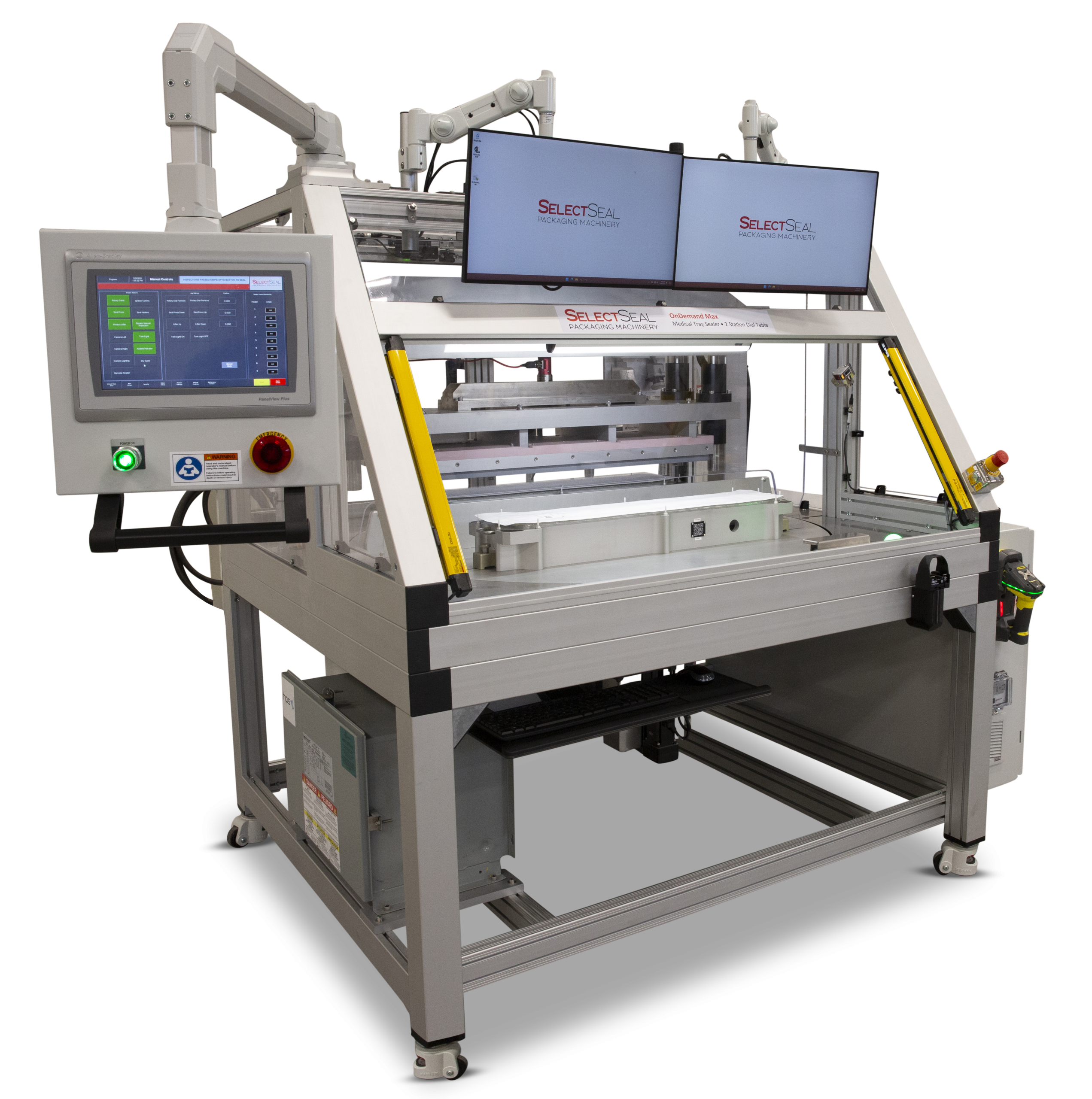

The SelectSeal Max is a medical tray sealer built on a 2 station dial table, sealing pre-formed trays with pre-printed, die cut lids to produce a finished sterile barrier package.

It is designed for high SKU, low to mid-range volume packaging, and suits large instruments and medical kits in 8 to 55 mil trays. Typical material combinations are PETG or HIPS trays with heat sealable Tyvek or medical paper lidding.

The seal station delivers 13,000 lbf of press force for trays up to 32 inches long by 10 inches wide by 3 inches deep, running at 2 to 8 trays per minute. That seal force suits deep draw trays and larger sealing perimeters where lower tonnage machines struggle to close consistently.

Tool changes are simple, with no water, wiring or reheating required, and recipe scan to load provides automatic tool verification so the wrong tool cannot be run against a recipe. Vision inspection covers the device, Tyvek graphics and variable data.

Controls are an Allen-Bradley CompactLogix processor with a 10 inch PanelView Plus colour touchscreen. Open software architecture means no controls lock-in, and the machine is fully validatable to GMP requirements. The machine requires no compressed air source and occupies a 56 by 54 inch footprint.

Lids for the SelectSeal Max are supplied pre-cut and pre-printed. Manufacturers running many tray formats can instead produce lids in-house on demand, cutting and printing them from rollstock as they are needed rather than holding pre-printed lid inventory for every SKU.
