SelectSeal Max200F

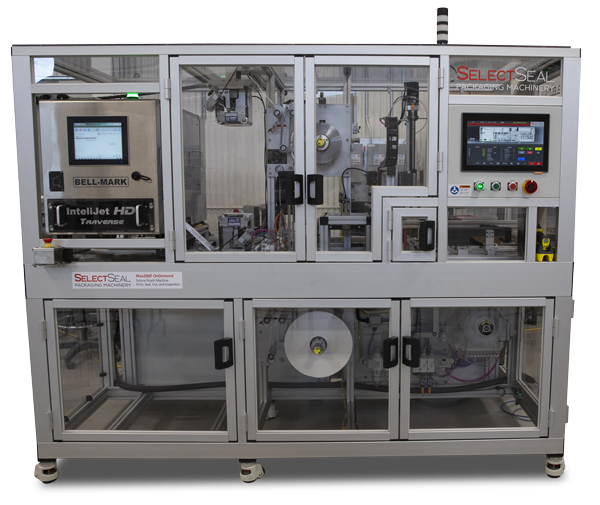

Inline Horizontal Fill-Seal • Pouch machine
Application
The Max200F is used to produce 3-side-seal and printed pouches from two layers of rollstock that are used for finished goods medical packaging. This machine is ideal for high volume, high SKU requirements in a clean room manufacturing environment. With the ability to run various film structures, online printing and quick-change seal tooling, the Max200F provides the most flexibility in producing pouches – on-demand for medical device manufacturers. Up to 8” wide format allows for a wide range of pouch sizes.
Packaging Materials
Rollstock Non-Forming Films: Heat sealable Tyvek®
Medical Paper, Foil or Poly Films
Horizontal Pouch Machine for Medical Device Packaging
The SelectSeal Max200F is a horizontal pouch machine that produces finished, printed, three-side-seal pouches on demand from two layers of rollstock, giving device manufacturers control over pouch supply and artwork in house.
Pouches are printed, sealed and cut inline from two flat webs. Running heat-sealable Tyvek®, medical paper, foil or poly films, the machine handles web widths to 8″ and formats to 8″ x 4″, covering most device pouch sizes. Larger formats run on the Max600F.
On-demand production is the point. Rather than holding inventory of pre-made pouches across dozens of SKUs, you print artwork and variable data per recipe as you go. Quick-change seal tooling needs no water, wiring or reheating, so switching format between runs takes minutes and short runs stay viable.
Verification is built in rather than bolted on. The servo seal station carries a 3,700 lb capacity with direct load cell feedback confirming every seal, recipe scan-to-load verifies the correct tooling is fitted, and optional Cognex or Keyence vision inspects print quality and device presence. Controls run on an Allen-Bradley CompactLogix processor with a 12″ PanelView Plus touchscreen and open software architecture — native files included, no controls lock-in.
The machine is Class 7 cleanroom compatible and fully validatable to GMP requirements, with process parameter verification, data change tracking, line clearance and four-level user security as standard. Output runs 3 to 20 cycles per minute into ten magazines of up to 250 pouches, with separate reject and QC magazines.
- Up to 8” wide web.
- 8” x 4” format for die lines.
- On-line digital printing.
- Optional Medical web cleaning system.
- Quick-Change Seal tooling.
- On-machine tool storage.
- Optional Bar code verification of seal tool to recipe.
- Print inspection of graphical and variable information per recipe.
- Servo-based seal station with direct load cell feedback.
- Modular, adaptable design allows varied packaging sizes and features
- Simple tool change. No water, wiring or reheating required.
- Class 7 cleanroom compatible
- Open software architecture, native software files included
- Allen-Bradley CompactLogix Processor with 12” PanelView Plus color touchscreen
- Recipe scan to load with auto tool verification
- Fully validatable, GMP Compliant
Machine Specifications
| Typical Configuration | Other Configurations | |
|---|---|---|
| Max Format (web width x index) |
8″ x 4″ (203mm x 102mm) | Larger format MAX600F readily available |
| Rollstock (top and bottom) | 14” (356mm) max dia roll, 3” (76mm) core | Larger diameter roll unwind options available |
| Web Cleaning System (optional) | 2-hood system or no web cleaning | 4 hood web cleaning system and anti-static bars by Static Clean International |
| Web Edge (optional) | Edge detection within 0.5mm with alarm | Optional auto web guiding system |
| Rate | 3 – 20 Cycles per minute (CPM) | |
| Materials of Construction |
Anodized Aluminum Extruded framework, SS, other cleanroom compatible materials | |
| Power (utility) | 240VAC or 480VAC, 3phase, 60hz | Other voltages available |
| Air Consumption (utility) | 80-100PSI air source, CFM to be provided based on actual application | |
| Film Unwinds | Powered, constant tension with low roll, web break and splice detect as standard | Dual roll unwind or cart |
| Top Web Print | Online digital UV printing, artwork per recipe | All print technologies can be provided, Eyemark registration for pre-printed top film |
| Seal Station | 3700# capacity servo based sealing station with direct force load cell feedback for verification | Pneumatic driven sealing available |
| Cutting | Matched metal round corner cutting | Cross cut knife (XMD) with Crush Cut (MD) |
| Tear Slit (optional) | Manually adjustable razor knife | Tear notch die available |
| Final Pouch Output Configuration | Good pouches stacked in 10 magazines of max 250 pouches, reject and QC magazines | Single row output with reject row dump conveyor |
| Controls | Allen-Bradley PLC and HMI with Yaskawa motion | Other platforms available upon request |
| Safety | Zero tolerance safety package | |
| Vision | Cognex or Keyence cameras for inspection of device presence or graphical print verification | |
| Software Features | Process parameter verification, 4 User security logins, Data change tracking, Line Clearance | Customizable per requirements |
